Model: XZ835D
Accessories: Standard

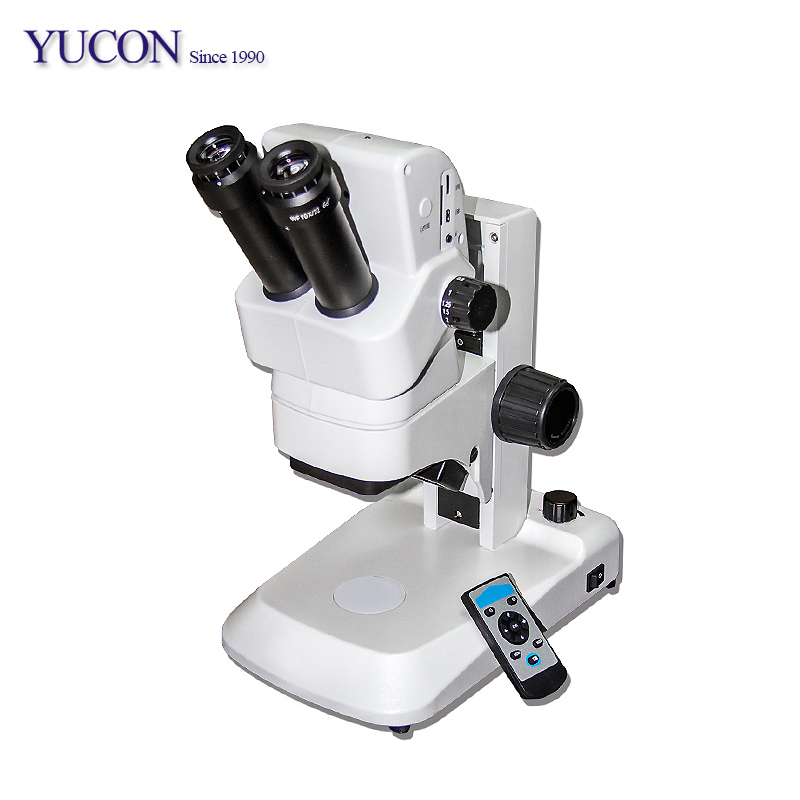

XZ835D is a digital zoom, continuous zoom stereo microscope combining high-definition image transmission, display and optical observation. This product is practical, convenient,
and efficient. It is designed for customers in the fields of trace inspection, document inspection and teaching.
l Newly designed optical system, Zoom ratio: 1: 4.4, continuous zoom objective 0.8X-3.5X, Imaging contrast, clear color reproduction are excellent.
l Built-in 5 million pixel digital camera system, 1/2.5寸CMOS, camera resolution 2592 * 1944

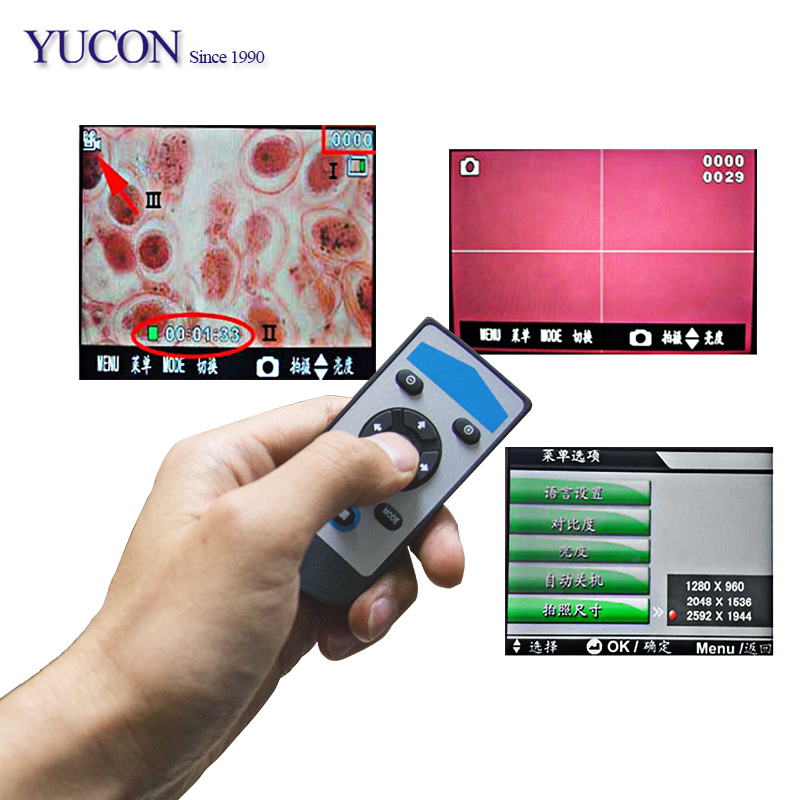

l Equipped with remote control to take pictures, camera system settings
l Film camera button, record the observed image at any time and save it to the SD memory card, maximum support 8G

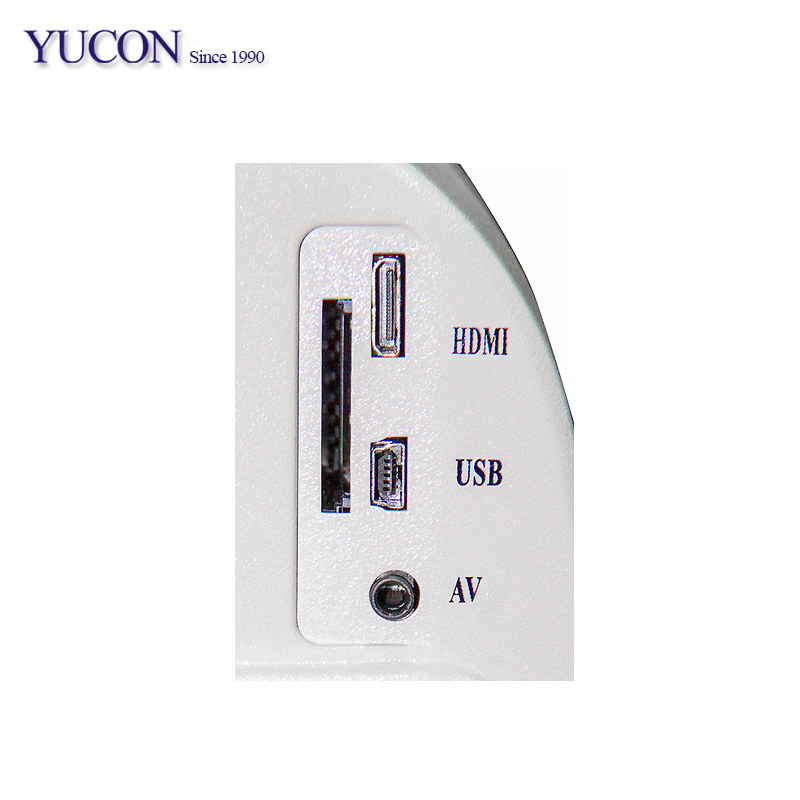

l With HDMI high-definition image output interface, AV video output interface, USB2.0 data reading interface, can achieve high-definition video output of image synchronization, standard video, projection and other functions
l One-piece structure, fixed eyepiece, Minimize the user's discomfort due to misoperation and damage to the microscope.
Magnification | Standard: 8X-35X |
Eyepiece | SWH10X 22mm, diopter adjustable |
SWH15X 16mm, diopter adjustable | |
SWH20X 12mm, diopter adjustable | |
Integrated digital observation | Binocular observation inclined 60°,interpupillary distance adjustment range 50mm-75mm,with built-in interlocking mechanism |
Continuous zoom objective 0.8X-3.5X,working distance 95mm | |
Integrated vertical arm type focusing base, focusing stroke: 92mm, adjustable tightness | |
Up and down single 5W high-power LED lamp, independent control of up and down lamp source, continuous adjustment of light intensity, at the same time can be bright, adjustable lighting angle of upper light source; 100V-240V wide voltage input | |
Integrated built-in 5.0mp pixel CMOS camera system, SD card slot, film camera button; image output interface: USB2.0、RCA、video、composite analog video port | |
Memory card | Kingston 2G SD memory card |
